Measuring Your Space For An Indoor Golf Simulator

Garages. Basements. Attics. Spare rooms. We've seen customers fit a golf simulator pretty much everywhere.

But, how do you measure for a golf simulator? It's a question we get asked a lot. Here are some tips on how to measure your space for an indoor golf simulator, from your friends at Carl’s Place.

Height, Width and Depth of a Golf Simulator Room

Can My Space Fit a Golf Simulator?

  1. Know the room size you need for a golf simulator.
    Golf simulator space requirements vary by both the golfer and the equipment. In general, though, indoor golfers are most comfortable in a room 14' wide, 18' deep, with 10' ceilings. But we can help you make accommodations for smaller spaces. We do it all the time.
  2. Test out your golf swing in the space.
    You are the one who needs to swing your clubs without knocking over lamps and hitting ceiling fans. Get out your clubs and test your space.
  3. Understand the space requirements for your equipment.
    Each launch monitor and projector has different space requirements which we'll help you with.

Sizing your golf simulator room doesn't sound all that hard, right? You have to have enough room to comfortably swing your golf club. And then, any requirements for your launch monitor and projector. Easy. Let's dig in.

Indoor Golf Simulator Room Dimensions

1. Ceiling Height for Golf Simulator

How tall do ceilings need to be for a golf simulator?

The average golfer needs a 9-10’ ceiling to golf indoors. Otherwise, you and your club will suffer. Depending on your height, arm length, club length and swing plane, you might be comfortable in less. Carl's Place's shortest enclosure fits low ceilings, but you'll be sacrificing swing space and which clubs you can use.

With a shorter ceiling, you won't be able to swing a driver. But, practicing with your shorter irons is better than nothing!

carls-tipTake your longest golf club (likely driver) to the space you want to use for your golf simulator. Take a few practice swings. You’ll quickly be able to tell whether the height available is going to work for you. If you can swing easily, without modifying how you swing, the space should work.

2. Width

The swing area to the left and right of the tee is also important. If you want your tee in the center of the simulator, or have both right- and left-handed friends, you'll need a wider golf simulator room. If you don't have a lot of width in your golf room, you can offset your tee, and get away with a smaller space

How wide should my golf simulator be?

To golf indoors, you need a room at least 9'-10’ wide. But, if you want your tee centered in the golf simulator (to accommodate both right- and left-handed golfers) you'll need a space at least 14' wide. Ultimately, make sure you have enough room to swing without hitting a wall.

3. Depth

Easily one of the most debated topics for golf simulators is how much depth you need. Often times the launch monitor you use in your golf simulator room will dictate the dimensions you need. Or vice versa, you'll need to choose a launch monitor, based on the golf simulator room dimensions you have available.

Regardless, the ideal depth for a golf simulator room includes:

  1. Space from the tee to the impact screen
  2. Buffer space behind the screen
  3. Room to safely swing

How deep should my golf simulator be?

18' is the ideal depth for a golf simulator room. Here's how we get that. Your impact screen should be 12"-16” away from the wall behind it. Then, it's a best practice to place your tee 10'-12' away from the impact screen. Lastly, give yourself 7' behind the tee to swing easily.

In total, 18' deep is ideal for a golf simulator room. That being said, we often see golfers set up simulators in spaces that are 15' deep or shallower. Don't get too shallow though - you'll find yourself compromising on buffer space, swing space, or the space between tee and screen. That's when you need to be careful and make sure your setup is safe. We really don't want you to have golf balls ricocheting directly back at your head.

If you do have a small simulator space, let us know! We'll see what we can do to help get you your perfect setup.

Get Help

carls-tipHaving enough depth is an important factor in reducing impact screen bounceback.

Another thing most golfers set up in their simulator is a projector. Choosing a projector for a golf simulator can be a challenge. There are specifications for the distance a projector can project an image, so make sure you're reviewing the specs on your projector as well.

Now, you can DIY a golf simulator with dimensions that fit all of these requirements.

You can install a wall-to-wall screen and add padded panels to your walls and ceiling using our Built-In Golf Room Kit.

Or, you can use an enclosure kit. Carl's Place sells 2 main types. Our DIY Golf Simulator Enclosure Kit for home golf simulators. And our Pro Golf Simulator Enclosure Kit for high-end home or commercial setups.

Whichever way you go, you'll get an impressive, built-to-fit golf simulator. Sounds fantastic, right? Here's some extra help on how to choose the best enclosure size and the different screen finishes we can customize for you.

Build My Simulator


How much room do you need for a golf simulator?

It's all about your swing. Many golfers feel good golfing in a 10'H x 14'W x 18'D golf simulator. Some fit golf simulators into a more compact space, but most indoor golfers go as large as they can with the space they have.

  • islands-summer-guide-golf-simulat
  • 2-carls-5d-golf-simulator-enclosure-1024x1024
  • golf-simulators_launch-monitors-and-software
  • golf-pro-enclosure-Nick-P_3-300x225

Also, before you buy, read the directions on your launch monitor. Yep, we said it - Read. The. Directions.

The launch monitor is what reads your swing and/or your ball to give you an idea of how you did. Each launch monitor has certain space requirements in order to do that.

Get to the launch monitor page. Open that user manual. Check the setup and space needs. You'll thank us later.

Fitting a Golf Simulator Into a Small Space

Don't let a smaller space hold you back from enjoying the thrills of an indoor golf simulator. In fact, many enthusiasts have had to get creative with their layouts.

Before investing in a simulator, it's important to test out your space by taking a few swings with different clubs to ensure you have enough room to swing comfortably. While some golfers can get by with 8-foot ceilings, taller players or those with a more upright swing may require a minimum of 10 feet or more.

Additionally, make sure to leave at least a foot of space behind the impact screen and three inches on each side of the enclosure for buffer space. We recommend a minimum of 10 feet from the screen to the ball, with an additional 7 feet behind the ball for optimal swing space.

If space is limited, you may be able to get away with a minimum width of 10 feet, but be prepared to offset your hitting area from the center of the room as this will allow for a comfortable backswing and follow through. A launch monitor with offset hitting settings can be helpful, but remember to test out your space before making any purchases.

Planning Your Space for a Commercial Golf Simulator

When designing a commercial space for golfers, it's crucial to plan out each hitting station to determine how many enclosures can fit comfortably.

Aim for a minimum height of 10 feet to accommodate all swings, and consider the number of bays required for your needs. If you plan to cater to both lefties and righties in the same bay, allow for a wider space of at least 14 feet for comfortable swings.

However, if only one side (right handed or left handed) will be used, you can create a smaller bay with a minimum of 7 feet of space behind the golfer. Keep in mind that deeper bays can offer more safety, and that enclosure wall wear can be an issue if one side is used more often.

All these factors must be considered when deciding on the number of bays and their positioning.

Get more tips for starting an indoor golf business.


Golf Simulator Space Requirements

Let’s look at the golf simulator space requirements for popular launch monitors.

Jump to: Uneekor QED | EYE XO | EYE XO2 | EYE Mini | Mevo+ | SkyTrak | Garmin R10 | Bushnell Launch Pro | GC3 | GCHawk | Falcon | GCQuad | Full Swing KIT | NVISAGE | Trackman iO

Uneekor QED Space Requirements

The QED is an overhead golf launch monitor that you can mount to a Carl’s Place Pro Enclosure, or your ceiling. Ceiling-mounted launch monitors typically let golfers feel more comfortable swinging in the golf simulator hitting area.

Uneekor QED space requirements in golf simulator

Space Required for QED Launch Monitor

  • QED Sensor must be mounted 9-10.5 ft from the ground
  • QED must be mounted 3.5' behind the tee
  • QED must have 12' from tee to screen, according to Uneekor, though we have seen golfers use the QED with less room in front of them

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction

carls-tipThe hitting mat and launch monitor can be offset from the center to allow for more room while swinging.

See QED Pricing

Back to top


Uneekor EYE XO and EYE XO2 Space Requirements

Uneekor EYE XO and EYE XO Launch Monitors are also ceiling-mounted, but compared to the Uneekor QED, they are higher resolution launch monitors with better video graphics and additional ball data metrics. The new EYE XO2 features a third infrared camera which gives indoor golfers a wider hitting area.

  1. Swing area: 13 Ft diameter with player in the center (Recommended)
  2. Ceiling height: 9-10.5 Ft (Required)
  3. Player’s distance from hitting screen: 12 Ft or more (Recommended)
Uneekor EYE XO space requirements in golf simulator

Space Required for EYE XO and EYE XO2 Launch Monitors

  • Sensor must be mounted 9-10 ft from the ground
  • Must be mounted 3.5' in front of the tee

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'

See Uneekor Pricing

Back to top


Uneekor EYE MINI Space Requirements

The EYE MINI does not have specific space requirements. You just need to follow the general space requirements of a comfortable golf simulator. The EYE MINI sits towards the front of the golf hitting mat, across from the golfer.

eye-mini-space-requirements-diagram

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

See Uneekor Pricing

Back to top


FlightScope Mevo+ Space Requirements

The Mevo+ golf simulator sits 8 feet behind the golfer, keeping it out of the way of swinging clubs and errant shots. And there's no need to move the Mevo+ if alternating between right- and left-handed golfers.

FlightScope Mevo+ space requirements in golf simulator

Space Required for Mevo+ Launch Monitor

  • Mevo+ must be placed 8' behind the tee

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

See Mevo+ Pricing

Back to top


SkyTrak Space Requirements

Unlike other launch monitors, SkyTrak does not have specific space requirements. You just need to follow the general space requirements of a comfortable golf simulator.

Takeaway: SkyTrak is a great launch monitor for basement golf simulators. Or any small spaces and low ceilings.

SkyTrak space requirements in golf simulator

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

See SkyTrak Pricing

Back to top


Garmin R10 Approach Space Requirements

The Garmin R10 Launch Monitor sits on the floor behind the tee keeping it out of the way of swinging clubs. It's compact and portable, making it great for indoor and outdoor practice.

Garmin R10 space requirements in golf simulator

Space Required for Garmin R10 Launch Monitor

  • Garmin R10 must be placed 6'-8' behind the tee

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

See Garmin Pricing

Back to top


Bushnell Launch Pro Space Requirements

The Bushnell Launch Pro does not have specific space requirements. You just need enough room to swing comfortably.

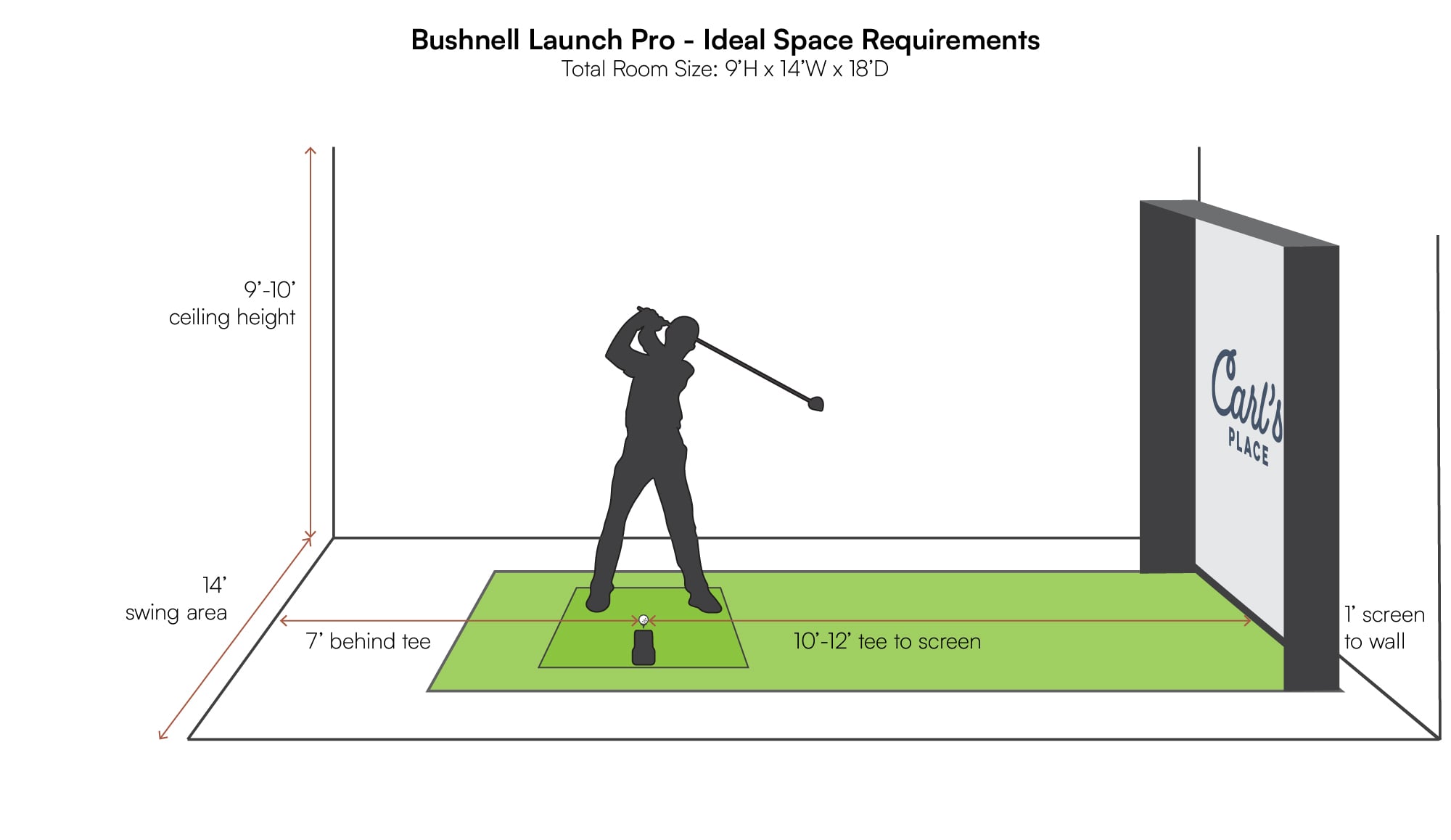

bushnell-space-requirements-diagram

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Back to top


Foresight Sports GC3 Space Requirements

The GC3 Launch Monitor does not have specific space requirements. You just need enough room to swing comfortably.

gc3-space-requirements-diagram2

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Foresight Sports Falcon Space Requirements

The Foresight Falcon Launch Monitor is an overhead launch monitor that is mounted 4' in front of the tee at a height of 9.5' to 10.5'.
falcon-space-requirements-diagram

Space Required for Falcon Launch Monitor

  • Must be placed 4' in front of the tee
  • Must be mounted 9.5' to 10.5' from the floor

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Back to top


Foresight Sports GCHawk Space Requirements

The GCHawk Launch Monitor is an overhead launch monitor that is mounted 4' in front of the tee at a height of 9.5' to 10.5'.
gchawk-space-requirements-diagram

Space Required for GCHawk Launch Monitor

  • Must be placed 4' in front of the tee
  • Must be mounted 9.5' to 10.5' from the floor

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Back to top


Foresight Sports GCQuad Space Requirements

The GCQuad and QuadMax Launch Monitors does not have specific space requirements. You need enough space to swing a club.

gcquad-space-requirements-diagram

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Full Swing KIT Space Requirements

You'll need 10' of space behind the tee to accommodate the Full Swing KIT Launch Monitor. And even then, since KIT is a radar-based launch monitor, the more space the better. It will use that extra ball travel to measure more data. This Tiger Wood's favorite is sleek and compact, but it does need a fair bit of room in order to get solid data indoors.Full Swing KIT space requirements in golf simulator

Space Required for Full Swing KIT Launch Monitor

  • Full Swing KIT must be placed 10' behind the tee

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

See Full Swing KIT Pricing

Back to top


NVISAGE N1 Space Requirements

The NVISAGE N1 Launch Monitor is an overhead launch monitor that is mounted 2' in front of the tee at a height of 9' to 10'.

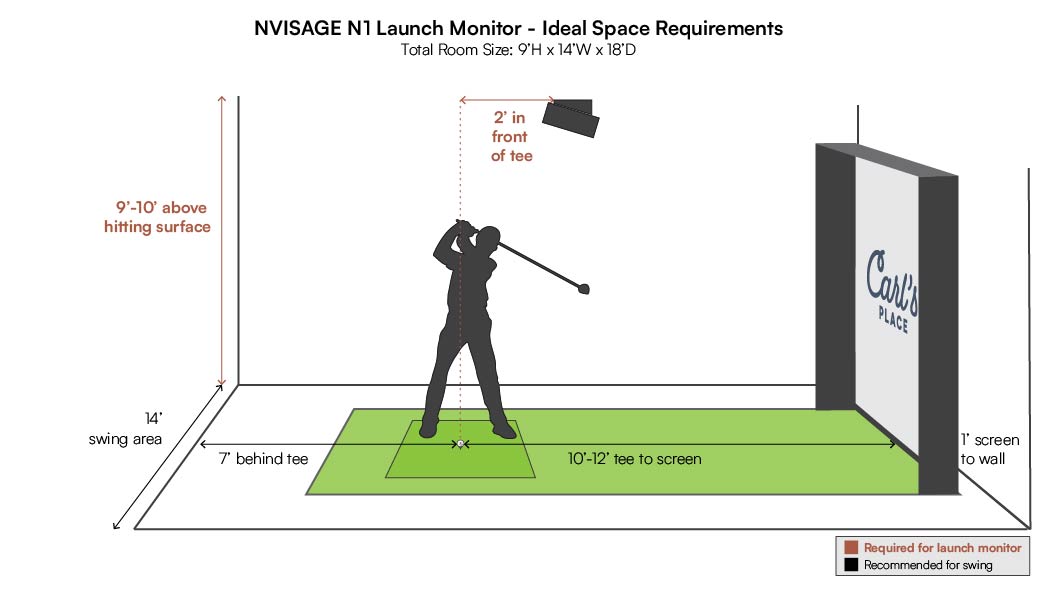

nvisage-space-requirements-diagram

Space Required for NVISAGE N1 Launch Monitor

  • Must be placed 2' in front of the tee
  • Must be mounted 9' to 10' from the floor

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Back to top


Trackman iO Space Requirements

The Trackman iO Launch Monitor is an overhead launch monitor that is mounted 3'3"-3'5" in front of the tee at a height of 9'4" to 10'.
trackmanio-space-requirements-diagram

Space Required for Trackman iO Launch Monitor

  • Must be placed 3'3" in front of the tee (measured from tee to center of mount)
  • Must be mounted 9’4” to 10’ (9’8” is ideal) above the hitting surface
  • Must golf from a green turf at least 6' deep by 5' wide.

Space Recommended for Swing

  • Swing Area: 7' around the golfer in every direction
  • Player’s distance from hitting screen: 10'-12'
  • Ceiling Height: 9'-10'

Back to top


The Wrap Up

If you skimmed this article, (no offense taken) here's the takeaway. If you want a golf simulator to fit your space right, you've got to measure right.

Follow our advice for height, width, and depth of the ideal golf simulator dimensions. And don't forget to check the specs of the launch monitor you choose.


Questions about your room dimensions? Advice at Carl's Place is always free. Go ahead and ask about measuring for your golf simulator in the comments below.
