Mix and Match Carl’s Custom Golf Impact Screen Finishes in 125 Different Ways

Customize the edges of your impact screen to build your golf simulator any way you'd like. Raw edges? Grommets? Flaps? Mix and match with made-to-order finishing options.

Building your own customized golf enclosure and/or impact screen? Cool, we gotchu.

Not only can we custom size them down to the inch, we can also customize the finish on your impact screen.

What is a golf screen finish?

By “finish” or “finishing,” we’re talking about the sewn edge of your golf screen. Carl’s Place has three popular ways of finishing golf impact screens: grommeted edges, grommeted edges with flaps to hide foam and frame, and grommeted edges with loop fasteners for attaching accessories. We also have made plenty of custom finishes for customers.

Before diving in, let’s talk about our five different custom finishes and their potential uses.

BASIC FINISHED EDGE

Includes a sewn-in 2.5 inch strip of vinyl without grommets on each edge of the impact material. Provides an aesthetically pleasing finish and stability to the impact material, but does not supply the screen with a hanging or tensioning mechanism.

FINISHED EDGE WITH GROMMETS

Our basic finished edge, but add in grommets that allow for support hanging and/or tensioning for the impact screen. Also called our classic finish.

Finished Edge With Grommets Golf Impact Screen

Grommets are placed in all four corners with the next grommet on each side 5.5 inches away from the corners.

Then, grommets are spaced equally across the remaining space between the near-corner grommets (the ones that are 5.5 inches away from the corner). The spacing between the remaining grommets is based on the screen size to ensure there is equal tensioning.

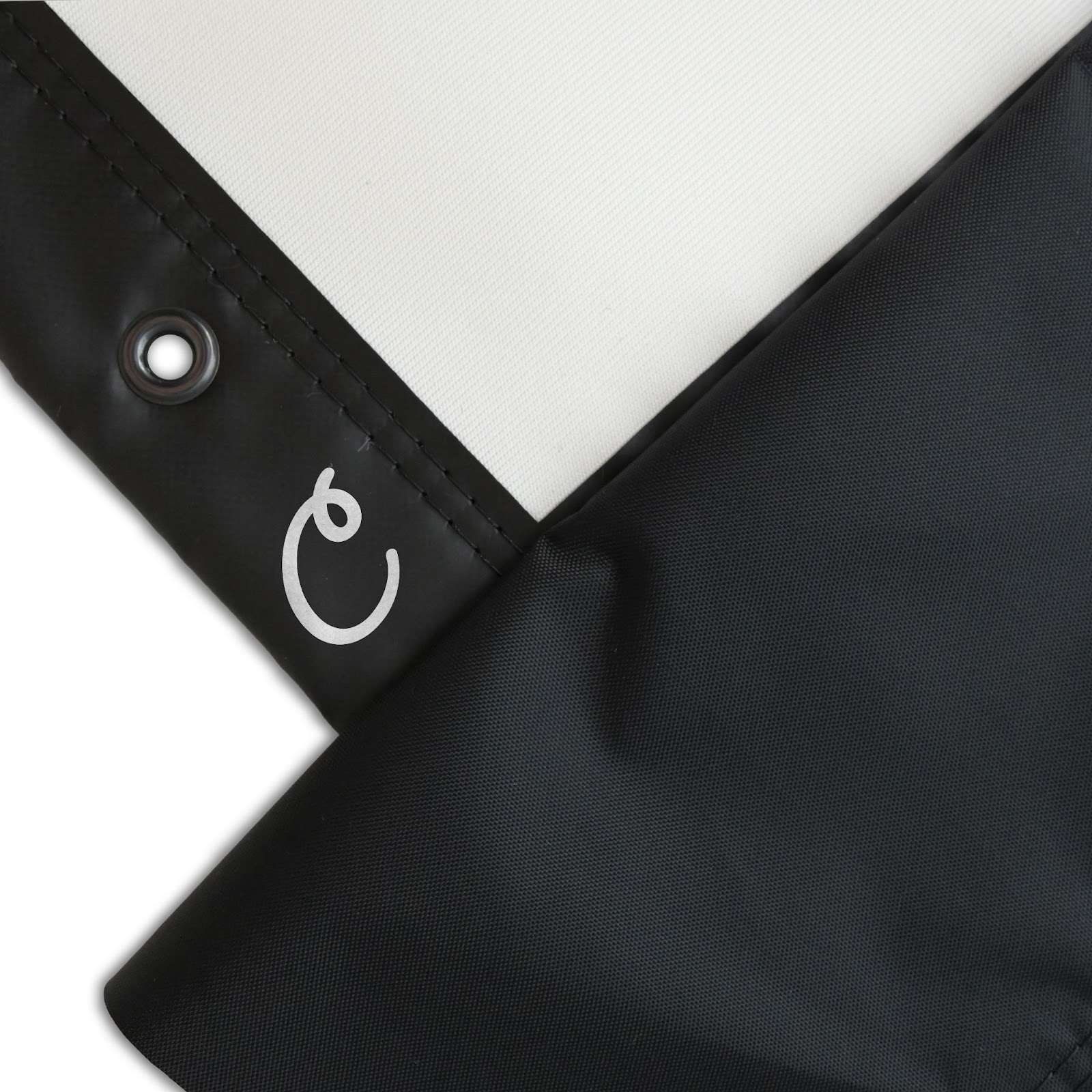

FINISHED EDGE WITH FLAPS

Flaps are added to the finished edge with grommets to cover the frame and give you that finished, professional look. The flaps themselves will not fully protect the frame from a ball ricocheting off of it. For added protection, you’ll want to include optional foam inserts with your order.

Not only do you get the same stability and tensioning abilities as the finished edge with grommets, but also an additional flap that can provide a smooth transition from the impact screen to your enclosure or setup. Also known as our classic with flaps finish.

Finished Edge with Flaps Golf Impact Screen

The most common application for this screen with nylon flaps would be inside one of Carl’s DIY Enclosures. The screen mounts to the frame using ball bungees through the grommets, but the flaps with a loop fastener strip on the end would attach to the enclosure wall, where there is a strip of hook fastener.

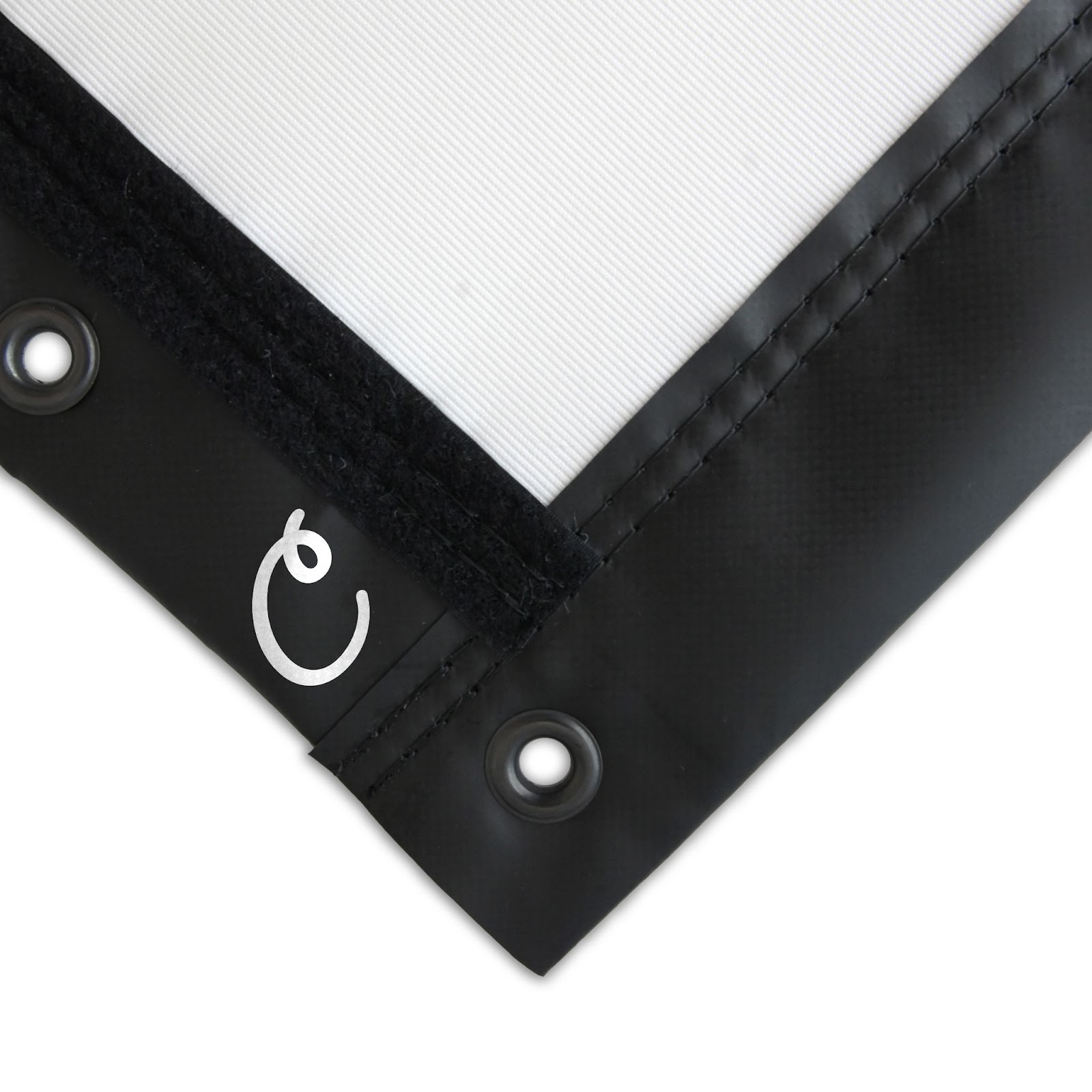

FINISHED EDGE WITH LOOP FASTENER

Add a strip of loop fastener to a finished edge with grommets. Will still provide the support and tension abilities thanks to the ability to attach screen to frame with ball bungees through the grommets. Also known as our classic with loop fastener finish.

Finished Edge with Loop Fastener Golf Impact Screen

As with the first two, the impact screen with the classic with loop fastener finish would attach to a frame with ball bungees through the grommets. The loop fastener strip is there as another mounting point for accessories with hook fasteners on it. Some ideas include curtains, nets or your own safety cushions.

This screen is mostly seen in Carl’s Pro Enclosures, which come with safety cushions that have hook fastener to attach to the screen’s loop fastener. The cushions are similar to the flap and foam inserts in Carl’s DIY Enclosures in that it provides a more finished look, and protects your pipes from errant shots, and you from errant shots that ricochet off the pipes.

However, these screens are also used by customers who have big plans for what they want to attach to the screen.

RAW IMPACT MATERIAL EDGE

Carl's Golf Impact Screen Materials

Raw impact material edges can provide a customer with 2.5 inches more of viewable space per edge. This is great for a carpet turf to digital, projected image turf transition for an immersive environment. Keep in mind that this edge may decline faster and does not supply the same support and tension as other finishes.

More of a visual person? Check out our video on our most popular finishes!



OTHER FINISHING OPTIONS

One key factor to think about as you look into purchasing a golf impact screen is how you want the screen to function in your space. We’ve had requests for all sorts of custom screens, including the ones below that allowed us to provide our customers with a product that fits their needs and style the best.

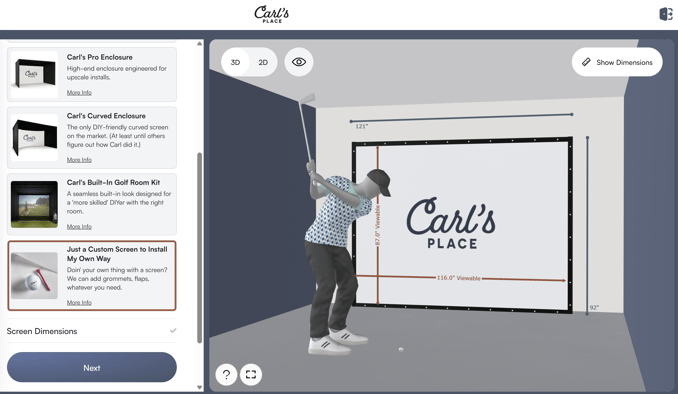

Below are some of the different edge to edge combinations. Let your inner golf imagination run free, and once you know exactly what you’re looking for, use the impact screen section of our Build Your Own Golf Simulator Tool to see what you can come up with!

Create My Custom Screen

***Please make sure to review our Return Policy when combining multiple finishes. These types of custom orders are typically not returnable.

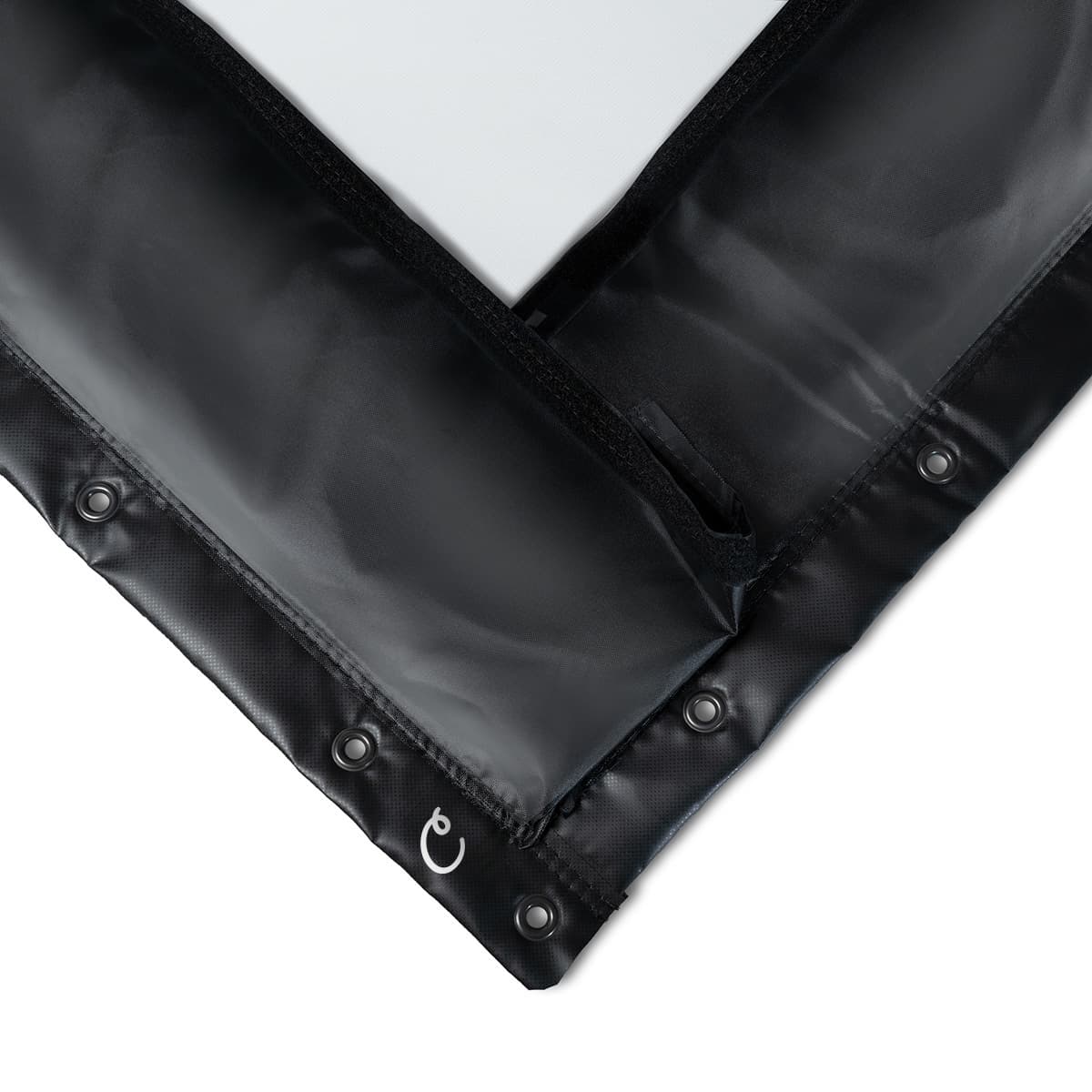

CUSTOM SCREEN CORNERS

To help you plan for how you will hang your impact screen, here are how the corners of screens customized with each of these multiple finishes would look.

FINISHED EDGE WITH GROMMETS TO FINISHED EDGE

Screen Shot 2022-11-21 at 2.06.13 PM

















FINISHED EDGE WITH GROMMETS TO RAW IMPACT MATERIALFINISHED EDGE WITH GROMMETS TO RAW IMPACT MATERIAL



FINISHED EDGE WITH GROMMETS AND FLAP TO FINISHED EDGE WITH GROMMETS

FWG to FWF

















FINISHED EDGE WITH GROMMETS AND LOOP FASTENER TO FINISHED EDGE WITH GROMMETS AND FLAP

Screen Shot 2022-11-21 at 1.24.02 PM

















FINISHED EDGE WITH GROMMETS TO FINISHED EDGE WITH GROMMETS AND LOOP FASTENER

Screen Shot 2022-11-21 at 1.25.56 PM

















FINISHED EDGE WITH GROMMETS AND LOOP FASTENER TO RAW IMPACT MATERIAL

Screen Shot 2022-11-21 at 1.27.55 PM















FINISHED EDGE WITH GROMMETS AND LOOP FASTENER TO FINISHED EDGE

Screen Shot 2022-11-21 at 1.28.35 PM















FINISHED EDGE WITH GROMMETS AND FLAP TO RAW IMPACT MATERIAL

Screen Shot 2022-11-21 at 1.29.55 PM

















With all of these finishing options, Carl’s Place can make your impact screen 125 different ways. And that’s not even all the custom sizing we can do!

Create My Custom Screen
